XR5 ANALOG

Be the first to review this product



Availability: In stock

Quick Overview

XR5 ANALOG.

XR5 Analog -1 Detector -2 Detectors XR5 is very familiar convention DR solution working with our Edge series (Wired & Wireless FPD) and Flugel user intuitive image acquisition and post-processing software. Elian is multi-purposes DR system with a single detector. Motorized U-arm geometry maximizes efficiency and its flexibility makes the system ideal for general radiographic procedures. XR5 is very familiar convention DR solution working with our Edge series (Wired & Wireless FPD) and Flugel user intuitive image acquisition and post-processing software.

XR-5

Double click on above image to view full picture

Zoom Out
Zoom In

More Views




FEATURES

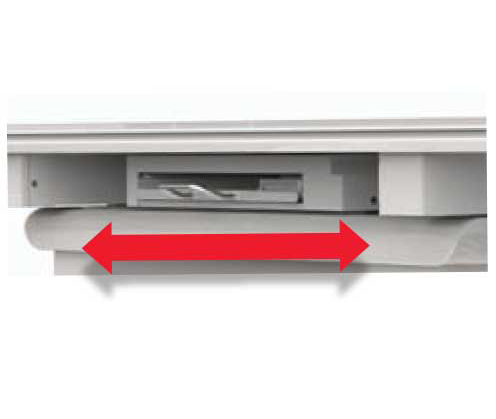

• 60 cm lateral movement table bucky tray

• Free-lock handlebar movement by sensor

• Easy digitalizing with EDGE SERIES (Optional)

OPTION

• EDGE SS, EDGE FS, EDGE FS Air

• Power output[KW]High Frequency Generator

• Power output[KW] 50KW

• Input power 220/208/230/240 V3~, 3Ø 50/60HZ

• KVP Step 40 to 150

• mA Step 10~800mA

• mAs 0.4 ~800mAs

• Time 1ms ~ 5sec [0.1 step]

EQUIPMENT COMPONENT

• Four-Way Table

• Tube stand

• Tube stand rail

• Bucky stand

• OP Console
